Synthesized Polyphonic Music Database

Markers for RWC Musical Instrument Sound Samples

RWC sample marker files include the onset markers for the following instruments in RWC-MDB-I-2001:

011 piano, 021 electric piano, 031 harpsichord
061 organ, 081 harmonica,
091 classic guitar (nylon string), 111 acoustic guitar (steel string),
132 electric guitar, 141 electric bass
151 violin, 161 viola, 171 cello, 181 contrabass, 191 harp
211 trumpet, 221 trombone, 231 tuba, 241 horn
251 soprano sax, 261 alto sax, 271 tenor sax, 281 baritone sax
291 oboe, 293 english horn, 301 bassoon, 311 clarinet
321 piccolo, 331 flute, 333 pan flute, 341-343 recorder, 351 shakuhachi
361 banjo, 371 shamisen, 381 koto

For the moment, there are mainly normal playing style available. For bowed instruments, pizzicato style is also included.

Rendering RWC Standard MIDI Files using RWC instrument samples

Rendering procedure

Make the instrument patches for a sampler using RWC samples of three dynamics (ff, mf and pp).
Separate each MIDI instrument track from the original MIDI file, retaining the tempo track and all control messages and channel messages.
Split each instrument MIDI file into separate tracks such that the rendered samples don't overlap.
Render each monophonic track using a sequencer+sampler system.

     Extract of Le Nozze di Figaro

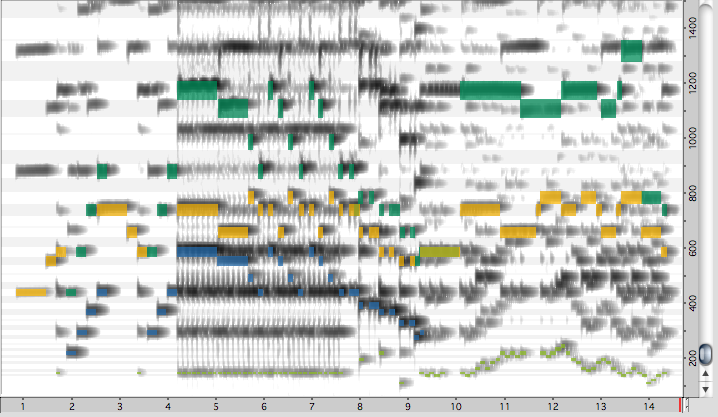

      MIDI notes overlaid on the spectrogram of the rendered signal

Instrument tracks: flute track, oboe track, clarinet track and bassoon track
Separate note tracks:

      flute: note track 1, note track 2, note track 3 and note track 4
         oboe: note track 1, note track 2, note track 3 and note track 4
         clarinet : note track 1, note track 2, note track 3 and note track 4
         bassoon: note track 1, note track 2, note track 3, note track 4 and note track 5

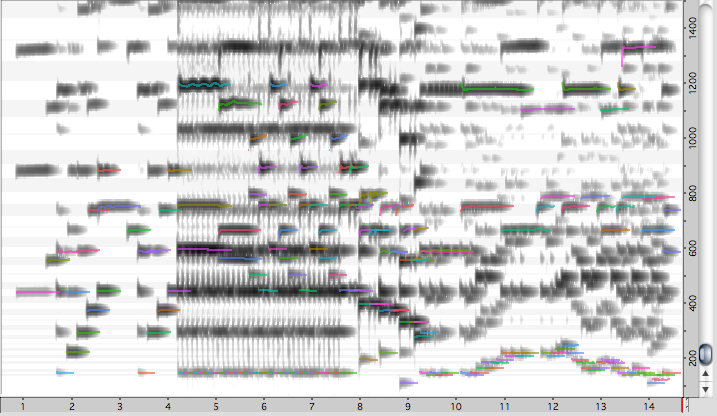

      Ground truth F0 tracks

      Each rendered sample is analyzed by the YIN algorithm to extract the F0s as ground truth. Gathering all the monophonic F0 tracks as the gound truth of multiple F0s for the synthesized polyphonic signal.
